Automated_region_setup

• This document gives you brief understanding aboutthe region setup, that we have done through Terraform.

• We have created the Jenkins Job to plan and apply the terraform script.

• While triggering the jenkins job, we need to pass some values to the script like, Cidr ranges, Names, Region e.t.c.

• First lets us see, what are the resources that are creating through terraform for region setup.

• VPC

• PUBLIC_SUBNETS

• PRIVATE_SUBNETS

• SECURITY_GROUPS

• PRIVATE_ROUTE_TABLE

• PUBLIC_ROUTE_TABLE

• INTERNET_GATEWAY

• ELASTIC_IP'S

• NAT GATEWAY'S

• S3 BUCKET

• SNS TOPICS,

• JENKINS_INSTANCE

• BASTION_INSTANCE

• OPENVPN_INSTANCE

• DNS

  • for jenkins with the domain name of jenkins-{region_name}.oriserve.com

STEPS TO CREATE INFRASTRUCTURE IN A NEW REGION

• Log in to jenkins.

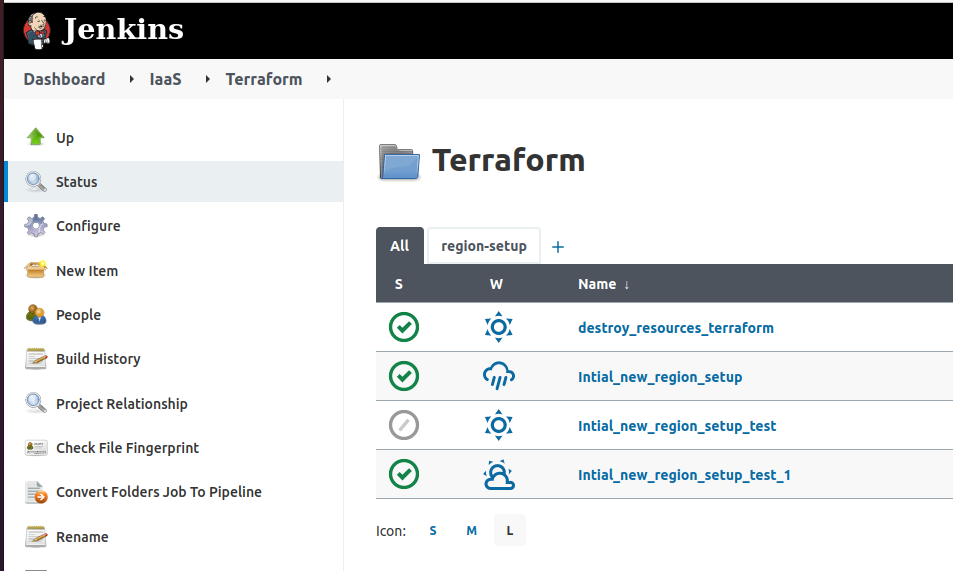

• Check for view IaaS then go the IaaS-> Terraform
• In the above image/location, you can find the job Intial_new_region_setup

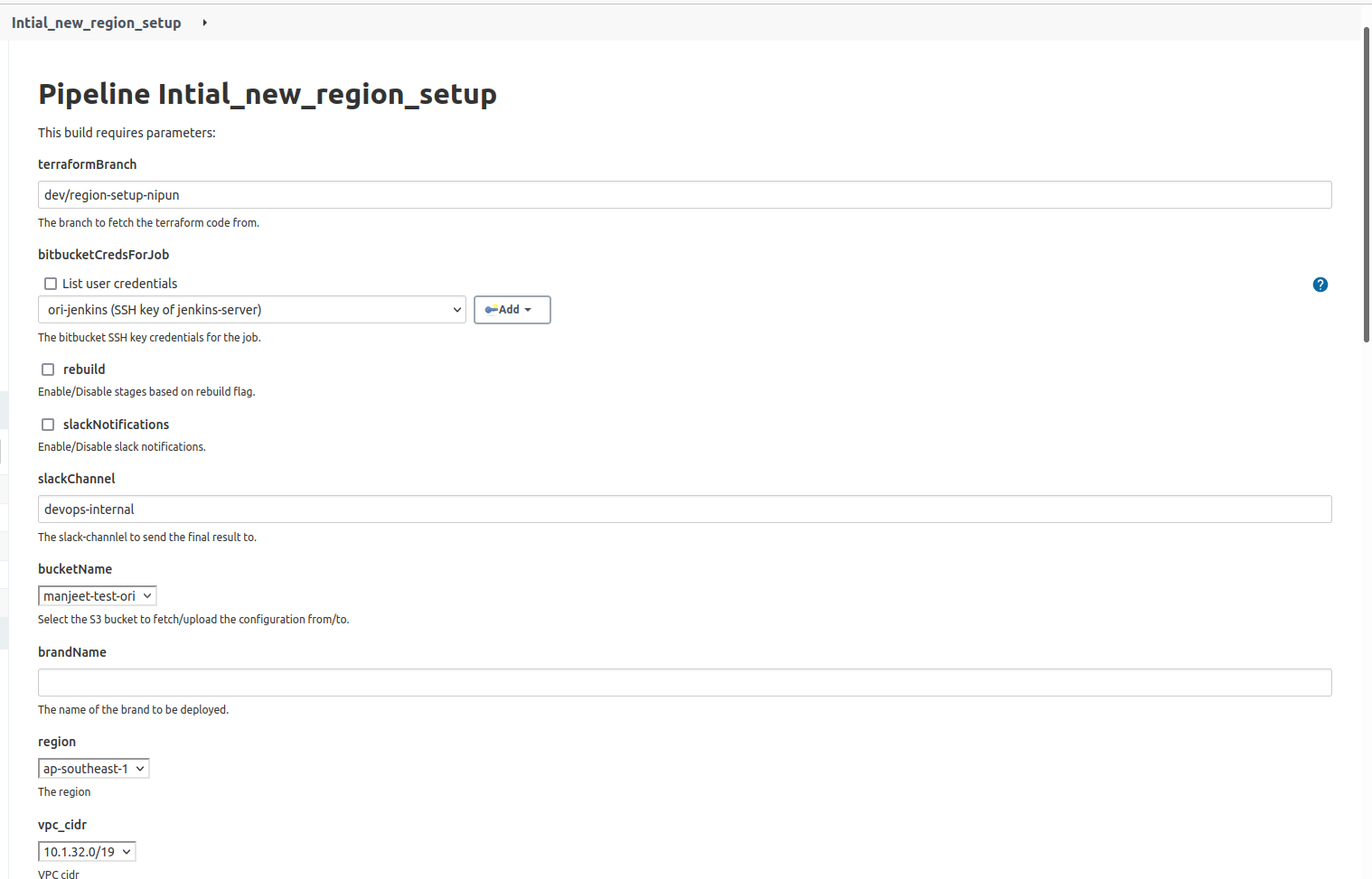

• select the job and provide the necessary values that are needed to create the infra.

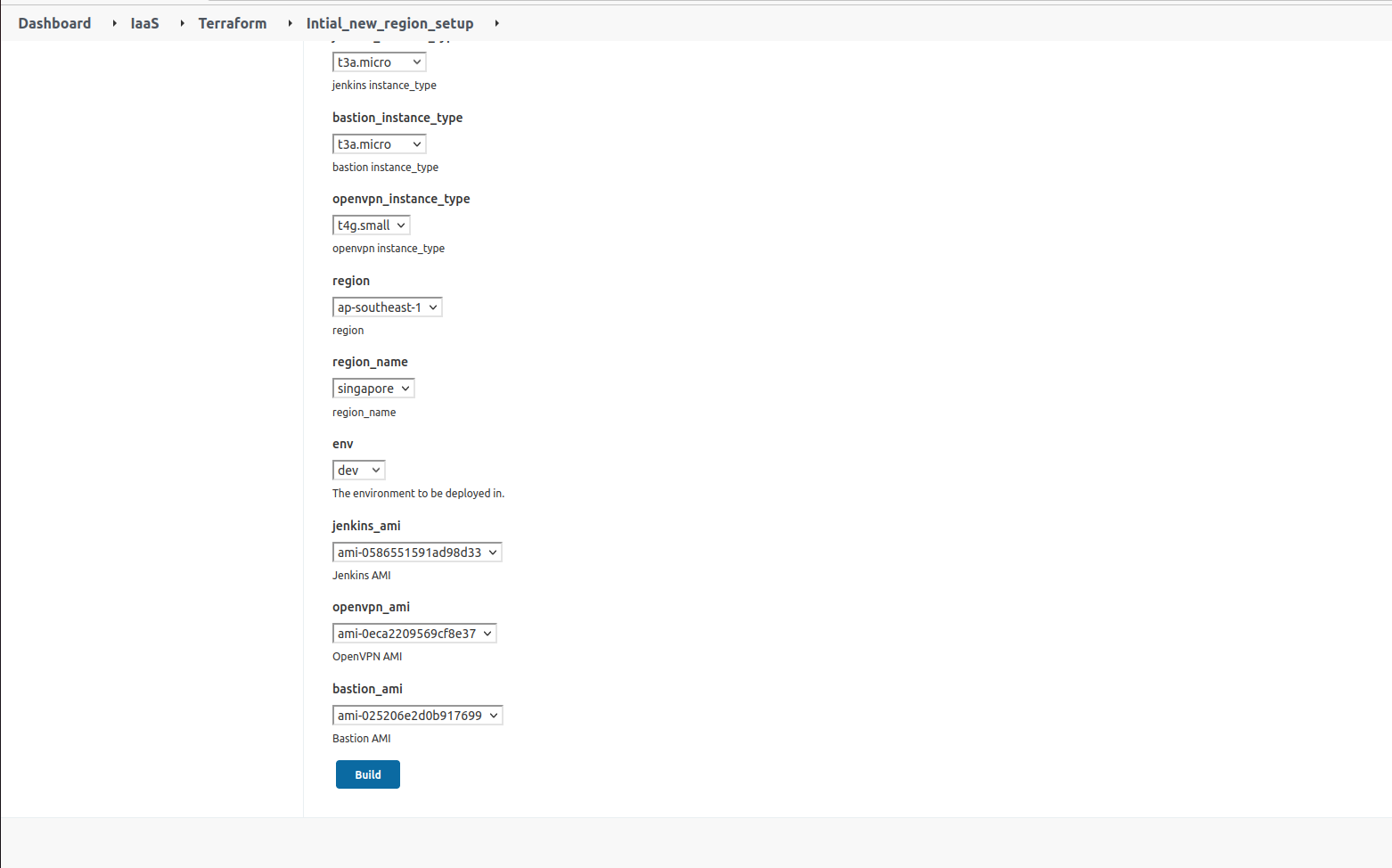

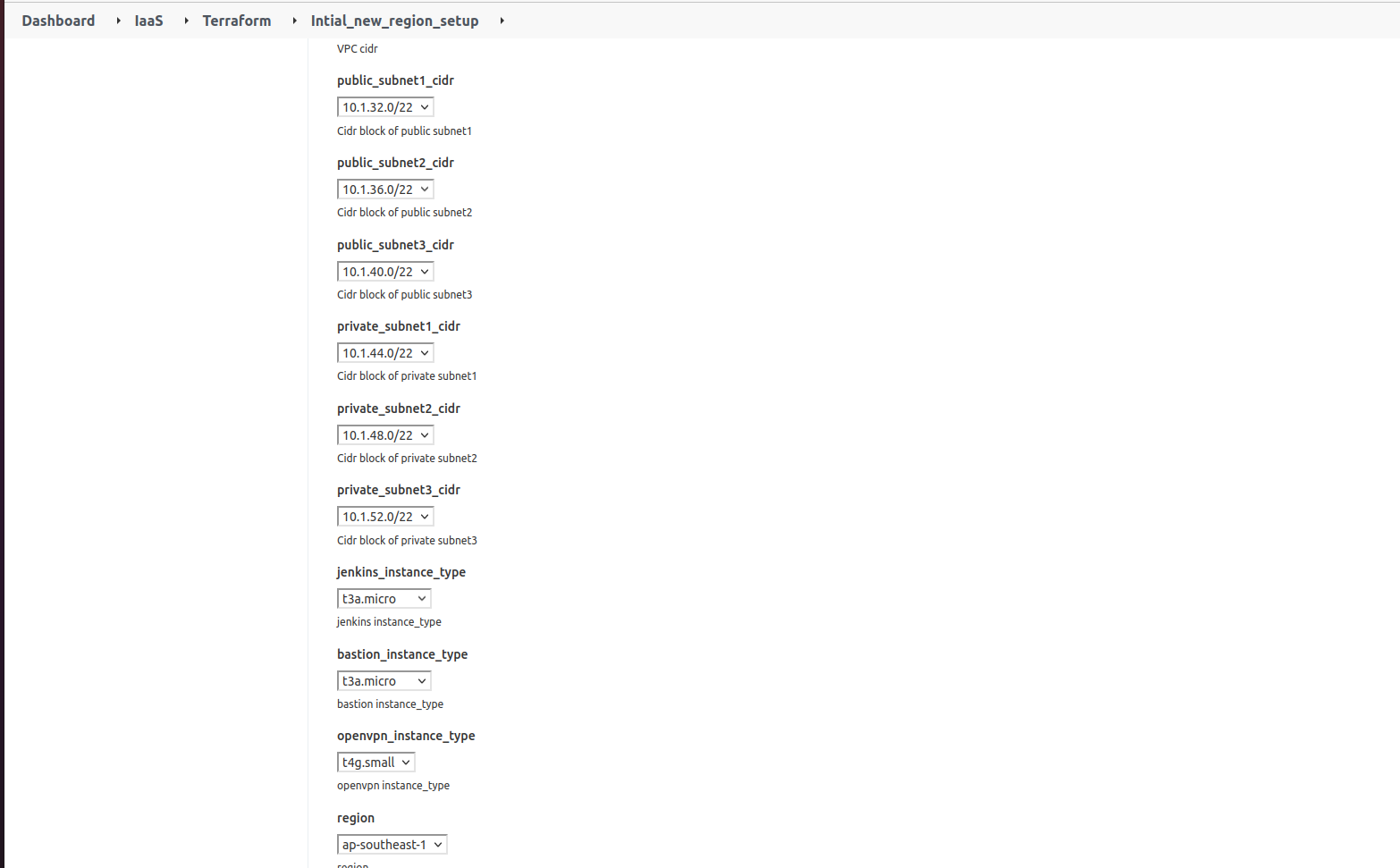

• In the above images, all values are only for reference. Change those values according to the requirement.

• By default, bucket will be manjeet-test-ori. If you want to contact the DevOps Lead.

• Along with with bucketName verify and provide the value of bucket_region from DevOps Lead.

• The brandName is to differentiate your every build, and store all the files of current Build.

  • For example, bucket_name is manjeet-test-ori and brandName is oriserve15, then the path that files will be stored at s3://manjeet-test-ori/Terraform/templates/oriserve15/Development/.
    • Files, that present at this location will be used to destroy the infrastruce that created by this job in future.

• region option is code of region you want to create the infrastructure. This is the region-code. NOT region name.

• In the above reference,region is ap-southeast-1

  • region_name is the name of region, you want to create the infra.

• In this reference, region_name is singapore

• For Instance_types,Instance_ami's, Cidr_blocks contact the DevOps Lead for confirmation.

  • In this doc,

    - Jenkins_instance_type - `t3a.micro`
    - openvpn_instance_type - `t4g.small`
    - bastion_instance_type - `t3a.micro`

    • These values are subjected to change according to the region. While selecting the type, contact the DevOps-Lead.

• While selecting the Instance_ami's, copy the ami from the existing region to desired region.

  • Example. copy the ami from mumbai to singapore

• While choosing the cidr_blocks contact to the DevOps-Lead. Make sure that cidr_blocks are not overlapping in region.

• After giving all desired & appropritate values, start the job.

• For Create apply, JenkinsAdministrator/DevOpsLead should approve.

• It will take the 40 minutes to get success the job.

• After getting SUCCESS , pem key which is required to login into instances is at workspaces

• Verify the jenkins server by browsing the jenkins domain name : jenkins-region_name.oriserve.com

• Make sure, SSL also enabled.

STEPS TO DESTROY THE CREATED INFRASTRUCTURE

danger

• DONT PERFORM THIS ACTION UNLESS IT IS MANDATORY
• Before triggering this action, get the strong confirmation from DevOpsLead only

• In this section, we will see steps to destroy the created infrastructure at above.
• Log in to jenkins.
• Check for view IaaS then go the IaaS-> Terraform
• In the above image/location, you can find the job destroy_resources_terraform
• select the job and provide the necessary values that are needed to destroy the infra.
• In the above image, provide the brandName that you given while creating the infra.
• S3 location that specified at starting about the files storing, you will find the file destroy_this.zip. Mention the URI of this file in the s3PathToDestroThisZip field.
• After providing the all necessary values,start the build.
• For Destroy apply, JenkinsAdministrator/DevOpsLead should approve.
