NLP model

  • This doc explains about the S3 bucket structure used for NLP service.

  • we use oriserve-dev-nlp bucket to store the NLP files.

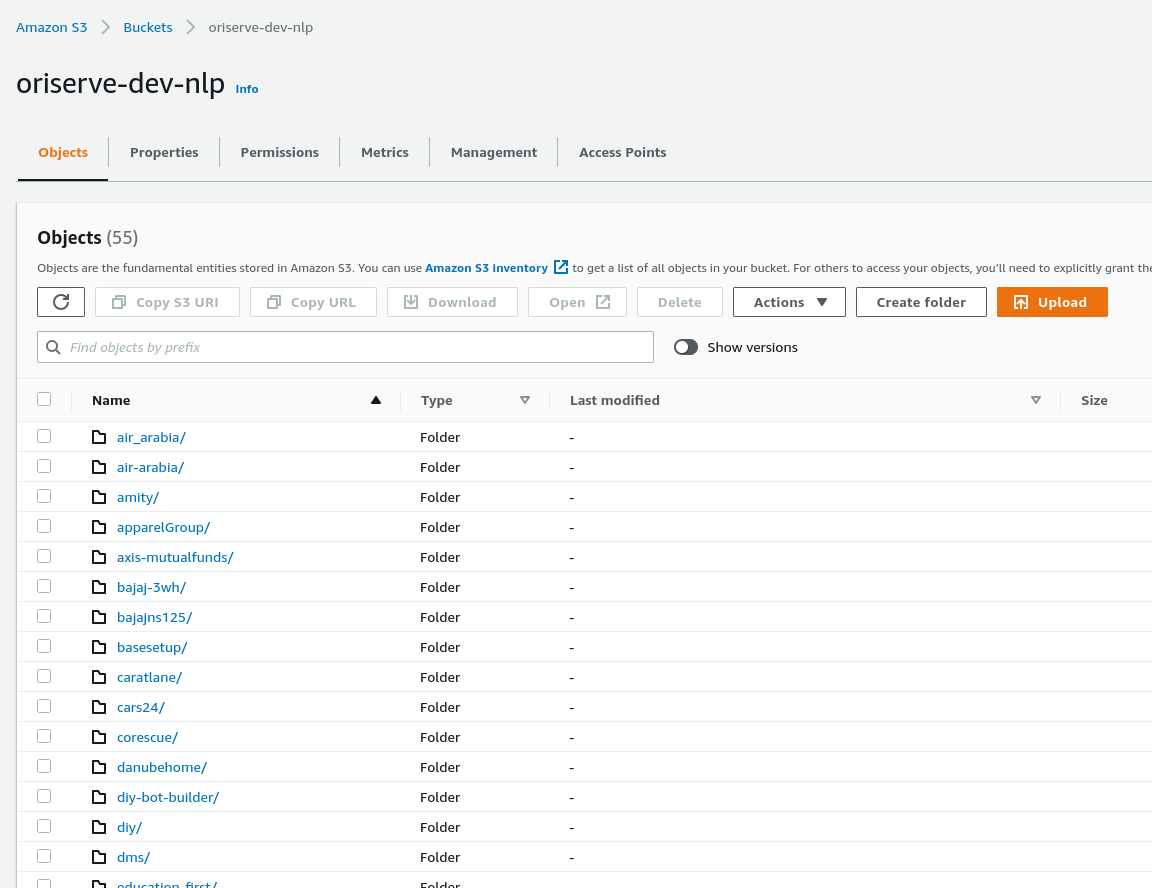

  • Below, you can see the bucket and its content (Brands).

  • These brand names are dynamic, which are subjected to change based on model trainings that mentioned below. nlp_bucket

  • In brand folders, it contains their NLP models.

  • Inside every brand, there will be three environments - dev, uat, prod

  • For every brand, there will be different models are used.

    • classifier_models: this model is used by most of the brands.
    • MUSE_dual, spellchecker: these models are specific to the brand. air_arabia_nlp

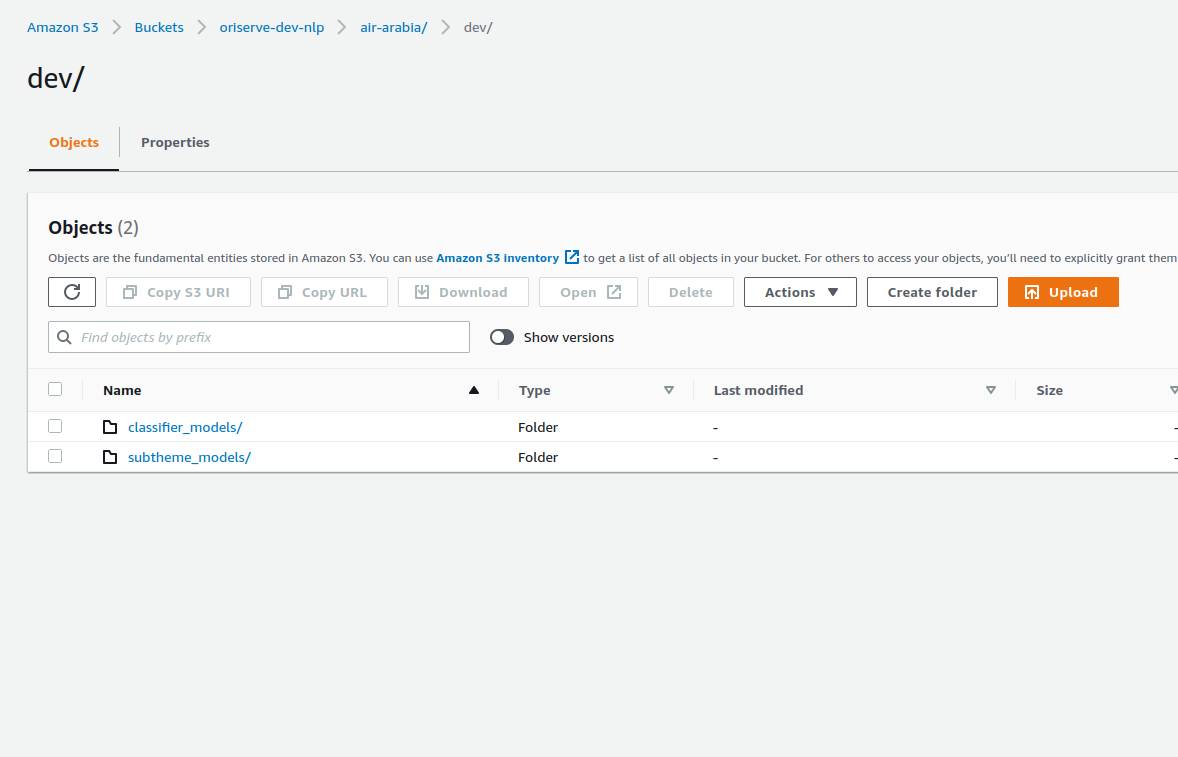

      • In the air-arabia brand you can find the model subtheme_models and classifier_models. tata_sky

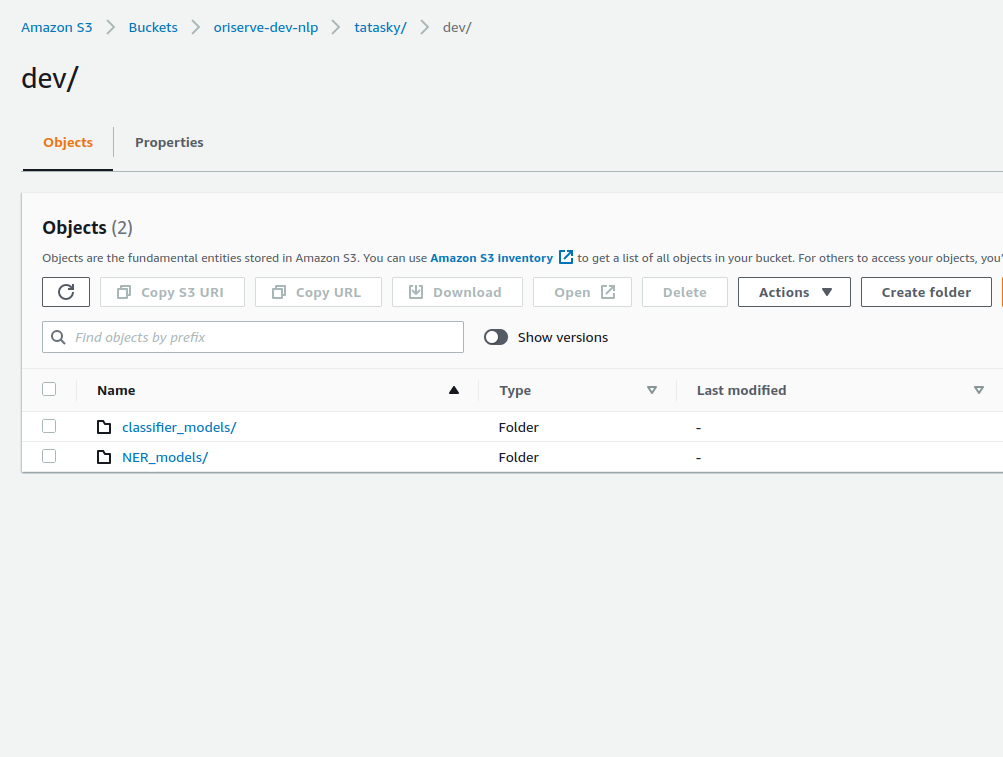

      • In the tata-sky brand, you can find the models classifier_models/ and NER_modelsvodafone

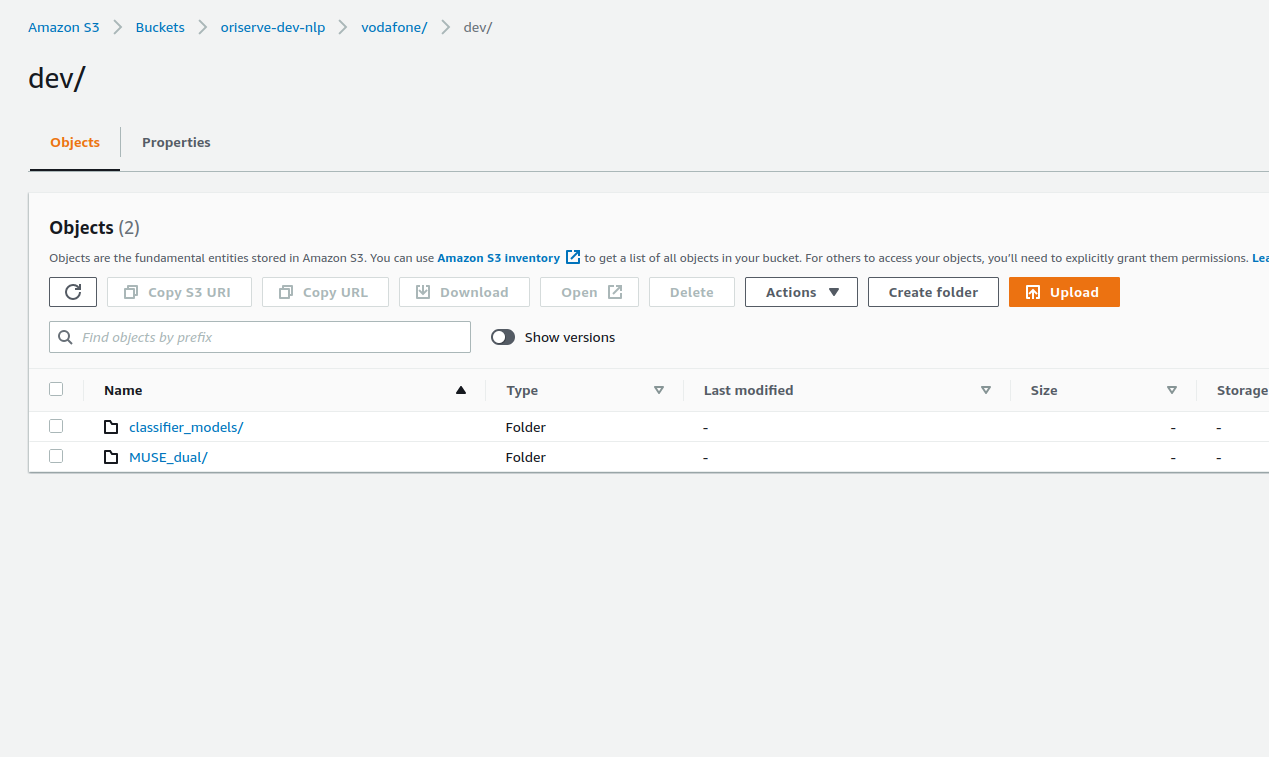

      • For the vodafone brand, you can find the models classifier_models/ and MUSE_dual.
      • To confirm the which models are using for the specific brand, you can get confirmation from the AI-team.

  • When the developers train the model, the respective files will be stored in Dev environment.

  • DevOps person have to perform data migration from dev to uat or prod according on the request/requirement.

  • To do this data migration, a jenkins job has configured.

    • For example, we got a request for dt ai model from dev to prod for air-arabia brand.

    • Log into jenkins.

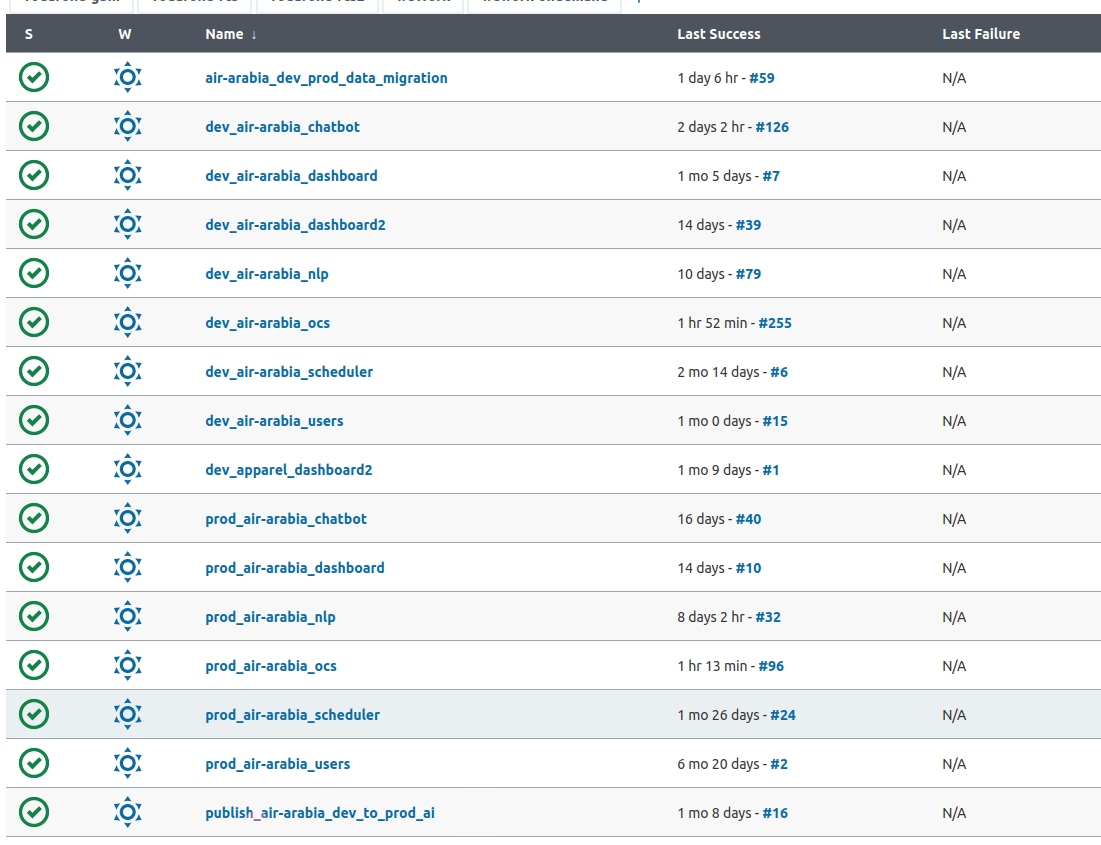

      • Check for view air-arabia then go to air-arabia. take below image for reference.

      air_arabia

      • In the above,image you will find the job publish_air-arabia_dev_to_prod_ai.
        • The trained dev model will store in dev folder in s3 bucket (as we seen in starting of doc). This job will publish the dev model to prod.

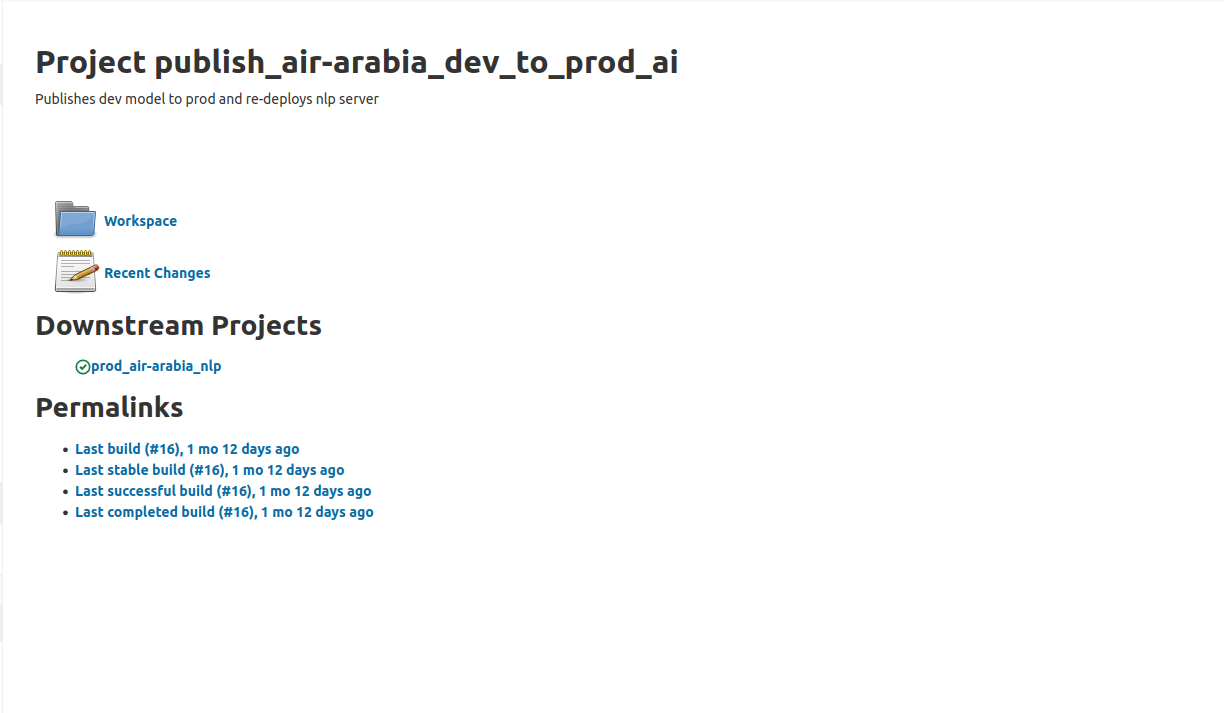

          • After successfully publishing onto the prod, It has a downstream job prod_air-arabia_nlp, which will deploy the prod model onto the prod AI server. down_stream
          • After success of this job, we have downstream project prod_air-arabia_nlp.
          • Where,prod_air-arabia_nlp will deploy the latest model on prod servers.
      • Select the respective job and start build.
      • After the job getting success, Verify that NLP model are migrated from dev to prod.
